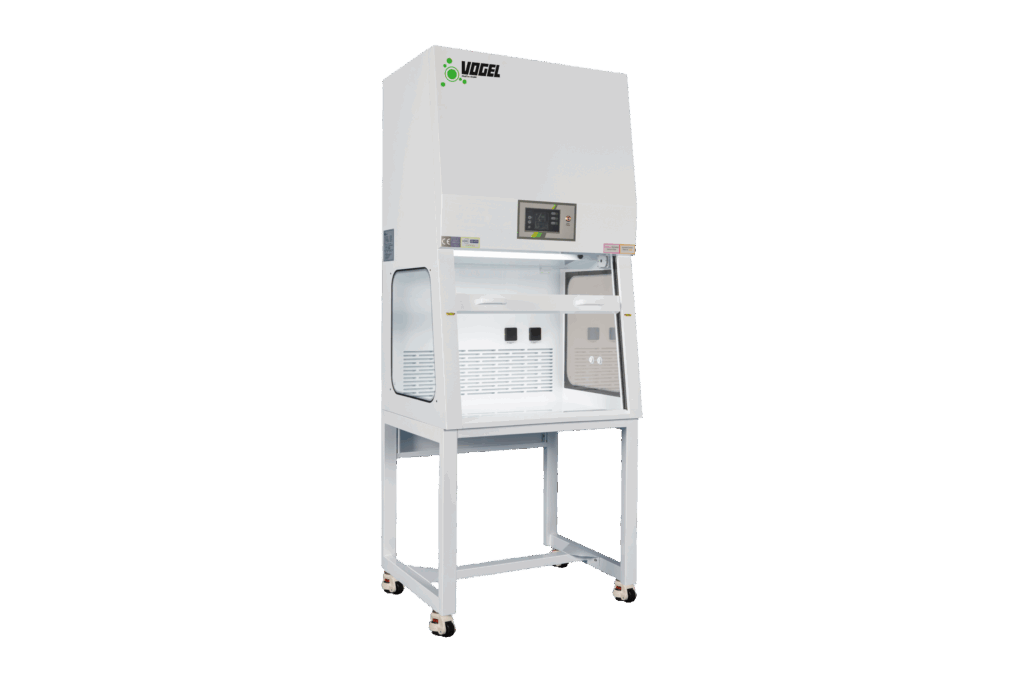

Universal Fume Hood DIN-EN 14175

The Vogel MedTec universal fume hood provides a safe working environment
for your laboratory staff.
Our fume hood is equipped with a precise air velocity display
and features an alarm that automatically adjusts
the air velocity to 100 ± 20 fpm (0.5 ± 0.1 m/s) to
ensure consistent safety.
In addition, this model is equipped with a state-of-the-art VOC sensor
that detects volatile organic compounds in the filter.
An alarm alerts you to elevated concentrations, so you
are always on the safe side.

Overview

  • 8 mm welded polypropylene with high chemical
    resistance
  • Built-in sealed polypropylene worktop or
    a selection of epoxy, stainless steel, ceramic, or Trespa high-pressure compact laminates (HPLs)
  • Front panel made of 5 mm safety glass with a sliding front panel featuring a counterweight
  • Side windows for improved visibility
  • 10.1″ color touchscreen display
  • VAV with airflow alarm and indicator
  • VOC sensor and alarm
  • Chamber alarm light (red) for critical alarms
  • Quiet, high-efficiency ECM fan
  • 800 lux LED lighting separate from the work area
  • Adjustable airflow velocity: 100 ± 20 fpm (0.5 ± 0.1 m/s)
  • Convenient front access for filter replacement
  • A wide range of HEPA filters, carbon filters, and pre-filters
  • 10″ (250 mm) exhaust connection collar for connection to an external exhaust system
  • Certifications: EN-14175, CE

Technical data

  • External Dimensions: W x D x H 1200 x 750 x 1500 mm
  • Work Area: (W x D x H) 1185 x 590 x 695 mm
  • Front Slider Max. Opening: 495 mm
  • Test Standard: EN-14175 / CE
  • Air velocity: 0.5 ± 0.1 m/s
  • Hood material:
    8 mm welded structure made of white
    polypropylene with integrated sealed
    polypropylene work surface
  • Noise level: <54 dB (Tested 20 cm from the work surface,
    1.2 m above the floor)
  • Power supply: 110 / 220 V, 50 / 60 Hz, single-phase
  • Lighting: 800 lux, eco-friendly LED lighting
  • Available filters:
    (2 different filters are available):
    Pre-filter & carbon filter for solvents,
    acids, bases, formaldehyde, multigas
    (mixture of substances) / HEPA

Order now
