Osmometer
Measurement technology with over 40 years of experience
Quality guidelines
The measurement technology is certified in accordance with the DIN ISO 9001:2015 quality standard.
As „in vitro diagnostic medical devices“, the osmometers are subject to the European Directive 98/79/EC on „in vitro diagnostic medical devices“. Conformity with the provisions of this directive is certified by affixing the CE mark to the type plate. A declaration of conformity is enclosed with each instruction manual and can also be requested from us.
All electronic devices are compliant with Directive 2002/95/EC (RoHS Directive) and 2002/96/EC (WEEE Directive) and bear the corresponding mark.
OM819 & OM819M
- Proven technology, now with a large capacitive color touchscreen (coming soon)
OM807
- i Osmometer basic
- Sample quantity 100 μl
- Simple operation via touch display in icon style
- Measuring time approx. 1.5 minutes
- Air cooling
- Clear sample identification through input via touch display
- Disposable vessels made from plastic
- Variable 3-point calibration
- User access via rights levels
- No water connection, therefore low operating costs
OM807M
- i Osmometer basic M
- Sample volume 10-25 μl
- Simple operation with icon-style touch display
- Measuring time approx. 1.3 minutes
- Air cooling
- Clear sample identification through input via touch display
- Disposable vessels made from plastic
- Variable 3-point calibration
- User access via rights levels
- No water connection, therefore low operating costs
OM819
- Sample quantity 100 μl
- Simple operation thanks to icon-style touch display
- Measuring time approx. 1.5 minutes
- Air cooling
- Clear sample identification with built-in scanner and time
- Disposable plastic containers
- Variable 3-point calibration
- User access with rights levels and passwords
- No ice formation, no freezing of measuring vessel and needle in standby mode thanks to regular automatic defrosting
- Needle compartment can be rinsed with water or disinfectant solution
- Built-in thermal printer & scanner for sample numbers
- Built-in real-time clock for the classification of measurements and calibrations for quality assurance
- No water connection, therefore low operating costs
- Mains voltage 100-230 VAC suitable for all countries

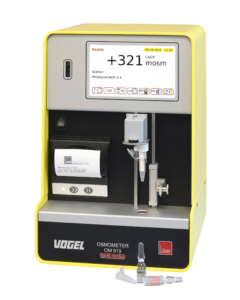

OM819M
- Sample quantity 10-25 μl
- Simple operation via touch display in icon style
- Measuring time approx. 1.3 minutes
- Air cooling
- Clear sample identification with built-in scanner and time
- Disposable plastic containers
- Variable 3-point calibration
- Built-in printer
- User access with rights levels and passwords
- No ice formation, no freezing of measuring vessel and needle in standby mode thanks to regular automatic defrosting
- Needle compartment can be rinsed with water or disinfectant solution
- Built-in thermal printer & scanner for sample numbers
- Built-in real-time clock for the classification of measurements and calibrations for quality assurance
- No water connection, therefore low operating costs
- Mains voltage 100-230 VAC suitable for all countries
