MULTISTAINER

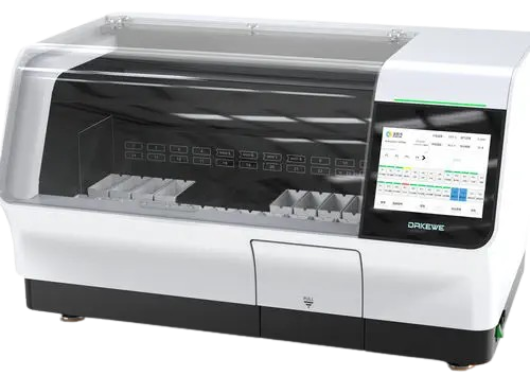

DAKEWE DP360 MULTISTAINER
The Dakewe DP360 Multistainer is a highly sophisticated, automated, and intelligent staining system designed specifically for histology. With its advanced technology, the DP360 enables fast, precise, and reliable staining of tissue samples at high speed. The system offers a wide range of programs and customization options to meet the specific requirements of research and diagnostics. By automating the entire staining process, the Multistainer reduces human error and increases laboratory efficiency. It represents an innovative step forward in histological specimen processing that enhances both quality and productivity.
General Description
- Up to 360 slides/hour
- Unit with oven and heated containers
- 26 (2 x 13) stations, 4 of which are heated:
- 4 slots for washing stations that can be converted into reagent containers
- 4 slots for the loading and unloading drawers, 2 of which can be converted into reagent containers
- 1 slot for a fixed oven module
- High-speed transport arm (1.3 m/s) for handling and moving the slide holders
- Compatible with a UPS battery backup
Ergonomic, Safety, Service, and Maintenance Features
- Large touchscreen – intuitive, user-friendly graphical interface measuring 25 cm (8.84”)
- Various user levels (operator, administrator, developer)
- Daily event report
- Highly efficient activated carbon filtration protects users from toxic fumes
- Monitoring of chemical levels (ppm) inside the machine with automatic ventilation control
Quality Control (QC)
- Reagent replacement settings in days or number of slides
- Real-time monitoring of the slide staining cycle
- Visual indicator of reagent quality (green, yellow, red)
- Visual indicator of the slide holder’s position (blue)
- Report on slide staining cycles (traceability)
- AAT (Automatic Adjusting Technology) reagent-saving mode, which optimizes the contact time of the slides based on reagent quality
- Automatic temperature management of the oven module (25°C – 40°C)
- Automatic temperature control of the oven (0°C – 70°C)
- Automated recording of processing data
The DAKEWE DP360 Multistainer automatic staining machine can be used either on its own or in combination with the DAKEWE CS600 automatic slide-covering machine.
